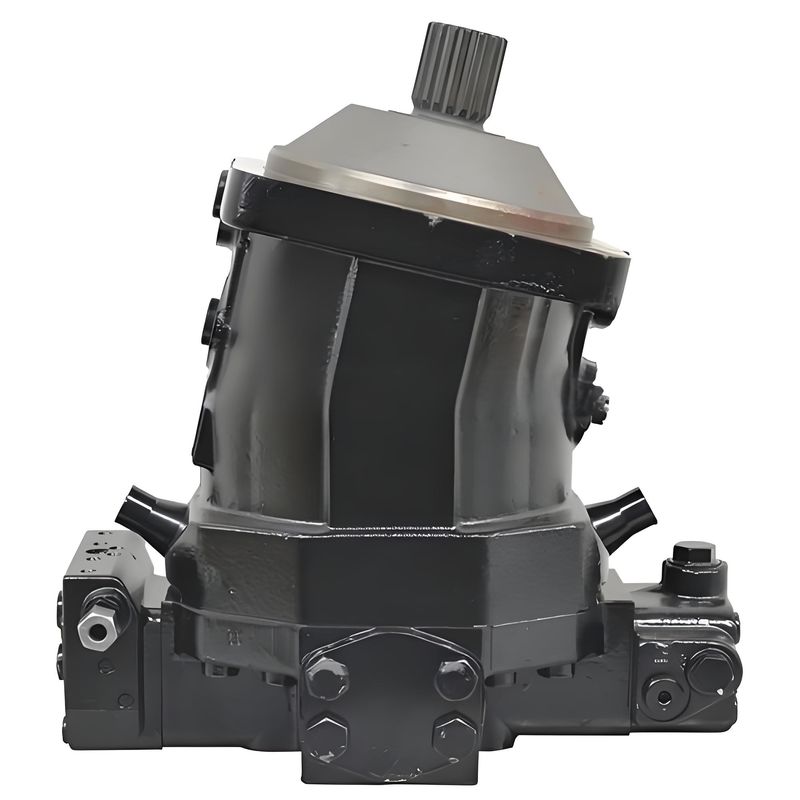

Rexroth Piston Motor A6VM 450 Bar Pressure for Mobile Hydraulics

Rexroth Piston Motor A6VM 450 Bar Pressure for Mobile Hydraulics

Features:

1. Variable motor with axial tapered piston rotary group of bent axis design, for hydrostatic drives in open and closed circuits.

2. Stepless variable displacement design

3. The wide control range enables the variable motor to satisfy the requirement for high speed and high torque.

4. Swashplate angle adjustment mechanism

5. The output speed is dependent on the flow of the pump and the displacement of the motor.

6. High power density

7. Wide control range with hydrostatic transmission.

8. Axial piston configuration

9. Cost savings through elimination of gear shifts and possibilityof using smaller pumps

10. Balanced valve plate

Technical data:

Specifications:

Applications:

Competitive Advantage:

1. The Rexroth A6VM axial piston motor features precision-engineered bearings and high-strength alloy steel components, delivering exceptional wear resistance and durability even under the most demanding conditions. Its internal hydrostatic balancing design reduces vibration and operational noise, ensuring enhanced comfort and safety. Ideal for heavy-duty applications such as construction machinery, mining equipment, and bridge erection, this piston motor combines robust performance with long service life—making it a superior choice for industries requiring reliable power transmission and minimal downtime.

2. The Rexroth A6VM piston motor delivers high power density and infinitely variable displacement, allowing compact installation while providing substantial torque output for precise motion control. Its integrated pressure compensation valve automatically adjusts flow to maintain consistent performance, making it ideal for applications requiring smooth start‑stop operations and variable speed control. From excavators and cranes to port handling machinery, this hydraulic motor offers seamless adaptability, improved efficiency, and reduced energy consumption—aligning perfectly with modern requirements for dynamic industrial automation solutions.

3. The Rexroth A6VM axial piston motor, featuring a dual‑row piston arrangement and optimized flow channels, is capable of handling a rated pressure up to 512 bar and maximum speeds of 2000 rpm. This high‑performance variable displacement motor meets demanding requirements for both power and speed in heavy‑duty applications. Its compact design minimizes footprint, offering greater flexibility in equipment integration. Widely used in oil drilling rigs, tunnel boring machines, and steel manufacturing, this axial piston motor ensures reliable operation under extreme conditions and contributes to increased operational uptime.

The Analysis For Rexroth A6VM Piston Motor Common Breakdown:

1. In failure scenario number 1, the A6VM axial piston motor may experience internal leakage and pressure drop caused by worn seals, insufficient lubrication, or contaminated hydraulic fluid. This fault can lead to reduced torque output and rotational speed, thereby compromising overall system efficiency and potentially resulting in increased vibration and operational noise. It is recommended to inspect and replace all seal elements, flush and replace the hydraulic oil according to the manufacturer’s specifications, and verify the condition of filters and the cooling system to restore optimal performance and extend service life. During reassembly and maintenance, technicians should strictly follow the manufacturer’s prescribed torque values and installation sequence to prevent secondary leakage.

2. In failure scenario number 2, unstable pressure circuits may form inside the A6VM axial piston motor due to leakage on the high-pressure side or blocked return oil passages, resulting in flow fluctuations and motor slipping. Symptoms include operational jerking, intermittent torque loss, and sluggish system response. To troubleshoot, inspect the high-pressure lines and return oil pipes for blockages or restrictions, clean or replace clogged pipelines and filter elements, and verify that the settings of hydraulic control valves and relief valves meet the manufacturer’s specifications. Proper restoration of pressure balance is essential for smooth and reliable motor operation.

3. In failure scenario number 3, excessive hydraulic oil temperature or a malfunctioning cooling system can cause the fluid to exceed permissible temperature thresholds, accelerating seal degradation, reducing lubrication effectiveness, and damaging bearings. This fault typically results in increased noise, reduced output power, and shortened component lifespan. Recommended corrective actions include inspecting the coolant circuit for blockages, cleaning or replacing the oil cooler, calibrating thermal sensors, and selecting hydraulic oil grade that matches the manufacturer’s viscosity requirements to maintain oil temperature within allowable limits and prevent thermal degradation of motor performance.
